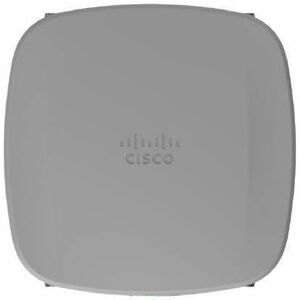

Meraki Catalyst CW9163E Tri Band IEEE 802.11a/b/g/n/h/d/r/ac/ax 3.90 Gbit/s Wireless Access Point – Indoor/Outdoor

Meraki Catalyst CW9163E Tri Band IEEE 802.11a/b/g/n/h/d/r/ac/ax 3.90 Gbit/s Wireless Access Point – Indoor/Outdoor – 2.40 GHz, 5 GHz, 6 GHz – External – MIMO Technology – 1 x Network (RJ-45) – 2.5 Gigabit Ethernet, Gigabit Ethernet – Wall Mountable, Pole-mountable

  • 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
  • 3.90 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability
  • Data Encryption ensures the safety of your precious data
  • External antenna form factor for reliable connectivity with maximum productivity
  • IEEE 802.11a/b/g/n/h/d/r/ac/ax wireless LAN standard ensures trouble-free and convenient connectivity
  • Management port allows the convenience of establishing a large, efficient network
  • Wall Mountable form factor for your usage convenience and better reliance
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office

Availability: 14 in stock

Estimated Delivery: Monday, 16th June

£670.17 Exc. VAT / £804.20 Inc. VAT

Secure Payments: Protected checkout with trusted payment providers.

Visa Payment Method
Mastercard logo
Mastercard Payment Method
PayPal Payment Method
Applepay Payment Method

Fast Shipping: Orders dispatched within 1–2 working days.

DHL Shipping Method
Mastercard logo
Mastercard Payment Method
PayPal Payment Method
Applepay Payment Method
Manufacturer's Part Code: CW9163E-MR Categories , , , UPC/EAN Code: 0810087204402

Condition: Brand New & Sealed. Sourced through manufacturer’s authorised UK channels.

The Cisco Wireless 9163E is an outdoor-rated, enterprise-class 802.11ax on-prem or cloud-managed access point. This AP is equipped with Tri-Band concurrent radios geared towards low/medium density applications. It will work with different external antennas for required directivity.

It features 2×2 Tri-Band traffic radios (2×2 2.4 GHz + 2×2 5 GHz + 2×2 6 GHz), 1×1 Tri-Band scanning radio and a 2.4 GHz IoT radio for (BLE/Zigbee/Thread etc.). It also has an inbuilt GNSS receiver for 6 GHz AFC compliance.

General Information

Product Type Wireless Access Point
Manufacturer Part Number CW9163EMR
Manufacturer Website Address http://www.cisco.com
Marketing Information

The Cisco Wireless 9163E is an outdoor-rated, enterprise-class 802.11ax on-prem or cloud-managed access point. This AP is equipped with Tri-Band concurrent radios geared towards low/medium density applications. It will work with different external antennas for required directivity.

It features 2x2 Tri-Band traffic radios (2x2 2.4 GHz + 2x2 5 GHz + 2x2 6 GHz), 1x1 Tri-Band scanning radio and a 2.4 GHz IoT radio for (BLE/Zigbee/Thread etc.). It also has an inbuilt GNSS receiver for 6 GHz AFC compliance.
Manufacturer Cisco Systems, Inc
Product Model CW9163E
Product Name Catalyst CW9163E Wireless Access Point
Product Line Catalyst
Brand Name Meraki

Physical Characteristics

Weight (Approximate) 1.50 kg
Form Factor Wall Mountable
Height 63.5 mm
Width 245 mm
Depth 245 mm
Antenna Form Factor External

Technical Information

Network Band Tri Band
Wireless Transmission Speed 3.90 Gbit/s
Frequency Band 2.40 GHz
Wireless LAN Standard IEEE 802.11a/b/g/n/h/d/r/ac/ax
Encryption Standard WPA2-PSK
Data Encryption Yes
MIMO Technology Yes
Beamforming Technology Yes
Indoor/Outdoor Indoor/Outdoor

Interfaces/Ports

Ethernet Technology 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports 1
Management Port Yes
PoE PD Port Yes

Network & Communication

Wi-Fi Generation Wi-Fi 6E
